LISBON 2010 – Single Droplet Measurement and Refractive Index Analysis

From July 5–8, 2010, the 15th International Symposium on Applications of Laser Techniques to Fluid Mechanics took place in Lisbon, Portugal. At this conference, Walter Schäfer presented an optical method for single droplet measurement and refractive index analysis.

https://www.lisbonsymposia.org

The oral presentation focused on the determination of water droplet size and refractive index using a light source with short coherence length. The work demonstrated how optical droplet diagnostics can be improved by using short-coherence-length light instead of conventional laser illumination.

Short coherence length light sources offer several advantages for droplet analysis. They can suppress interference between different scattering orders in the far field. This creates a more monotonic intensity response as a function of droplet size. It can support more stable optical evaluation, especially for transparent spherical droplets.

The Lisbon 2010 contribution used glare point imaging to estimate two important droplet properties. The first property was the droplet size. The second property was the optical refractive index.

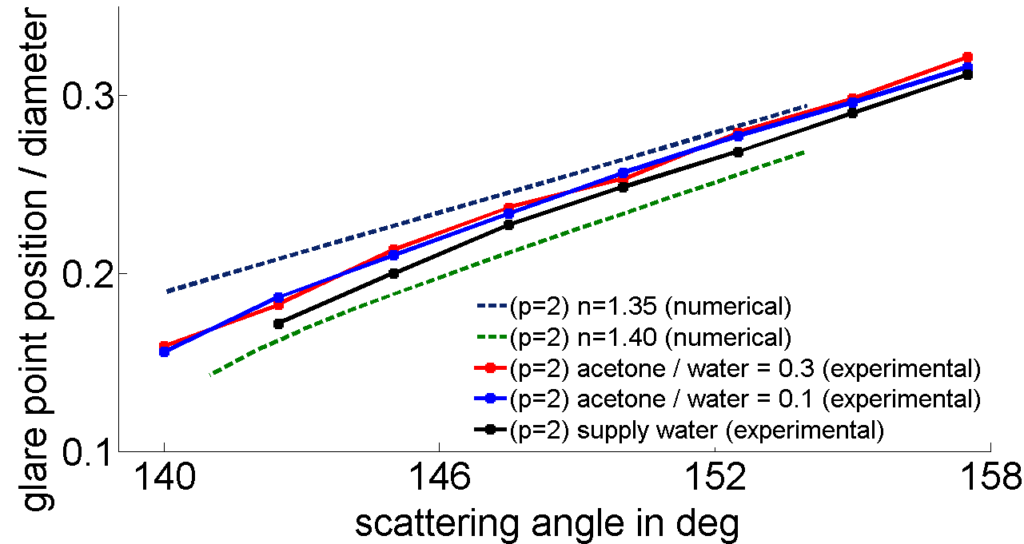

The method evaluated the distance between reflective and refractive glare points. It also used the intensity ratio between these two optical features. Together, these parameters provide information about the droplet and its optical behavior.

This early research is closely connected to the later development of advanced optical measurement systems for droplets, sprays and particles. It shows how detailed light-scattering information can be used to extract physical properties from individual droplets.

Today, this concept remains relevant for spray diagnostics, pharmaceutical sprays, coating processes and fluid-mechanical research. It also forms part of the scientific background for intelligent optical measurement technologies developed by ai-quanton.
